Quick Start
Let's discover LAYRA in under 10 minutes - the visual-native AI agent engine that sees, understands, and acts.
Getting Started
Deploy LAYRA with Docker to unlock its full visual-first RAG and Workflow capabilities:
What You'll Need
- Docker and Docker Compose
(Installation Guide) - NVIDIA GPU with drivers and NVIDIA Container Toolkit
(Setup Instructions) - 15GB+ free disk space (for AI models)
Deployment Steps
1. Clone Repository & Configure
git clone https://github.com/liweiphys/layra.git
cd layra
vim .env # Edit key parameters (SERVER_IP, MODEL_BASE_URL)
2. Launch Services (First run downloads ~15GB models, be patient)
docker compose up -d --build
If you encounter issues with docker compose, try using docker-compose (with the dash) instead. Also, ensure that you're using Docker Compose v2, as older versions may not support all features. You can check your version with docker compose version or docker-compose version.
3. Monitor Model Weight Initialization
docker compose logs -f model-weights-init
Be patient - Initial model download takes 20-40 mins depending on network speed. Grab a coffee!
Verify Installation
- Check running services:
After running docker compose up -d --build, check container status with:
docker compose ps -a
Successful installation will show:
NAME IMAGE STATUS
layra-backend-1 layra-backend Up (healthy)
layra-frontend-1 layra-frontend Up
layra-kafka-1 bitnami/kafka:3.8.0 Up (healthy)
layra-kafka-init-1 layra-kafka-init Exited (0)
layra-milvus-etcd-1 quay.io/coreos/etcd:v3.5.18 Up (healthy)
layra-milvus-minio-1 minio/minio Up (healthy)
layra-milvus-standalone-1 milvusdb/milvus:v2.5.6 Up (healthy)
layra-minio-1 minio/minio Up (healthy)
layra-model-server-1 layra-model-server Up (healthy)
layra-model-weights-init-1 layra-model-weights-init Exited (0)
layra-mongodb-1 mongo:7.0.12 Up (healthy)
layra-mysql-1 mysql:9.0.1 Up (healthy)
layra-nginx-1 nginx:alpine Up
layra-python-sandbox-1 python-sandbox Exited (0)
layra-redis-1 redis:7.2.5 Up (healthy)
- 10+ containers in
Up (healthy)status - Init containers (
kafka-init,model-weights-init,python-sandbox) showExited (0)(successful exit) - No error messages in status column
- Nginx exposes port 80 (web UI access)
Access Your LAYRA Instance
Open your browser and visit:
http://<your-server-ip> (Default port 80)

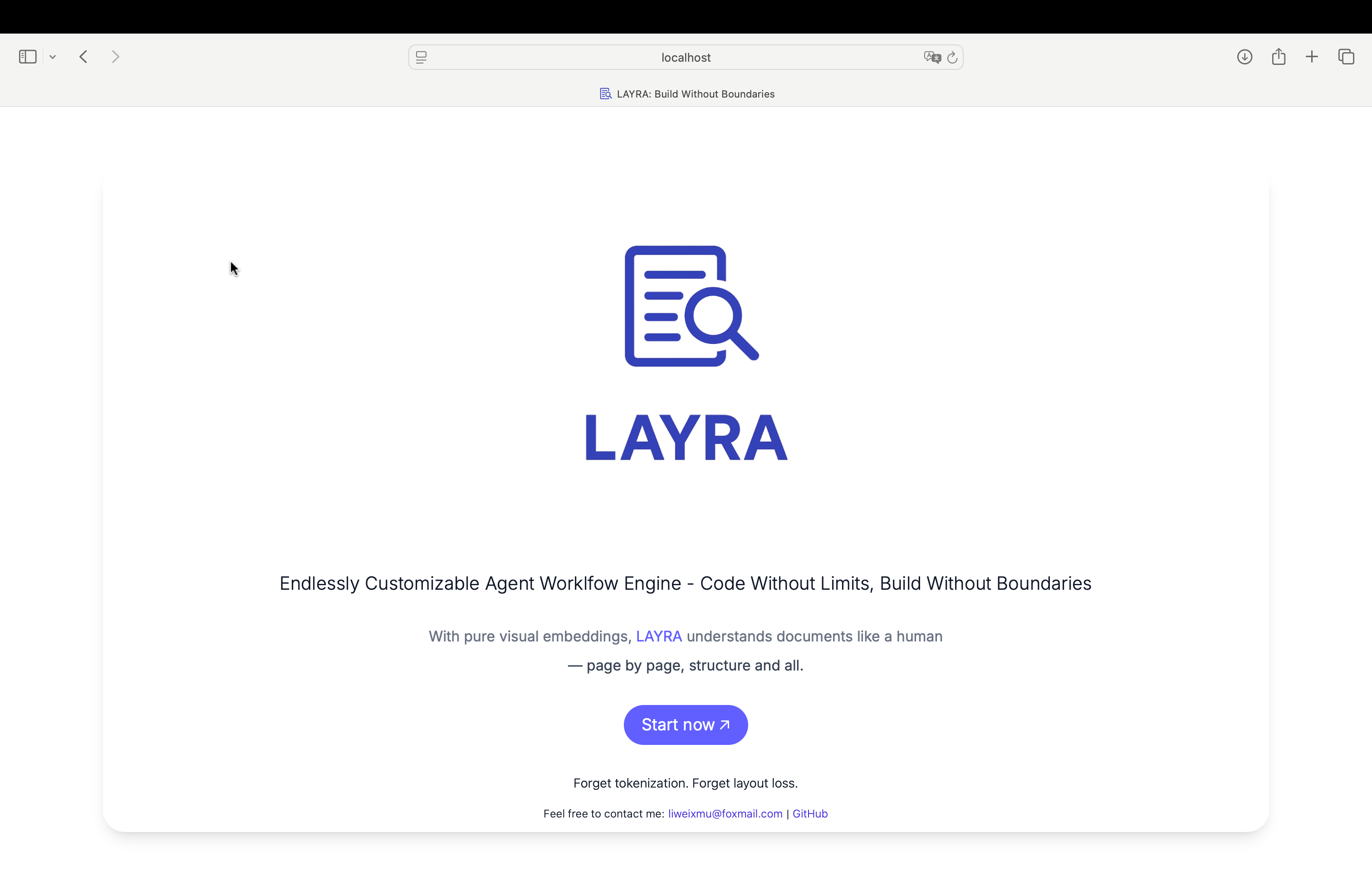

You should see:
Troubleshooting Tips
If services fail to start:
# Check container logs:
docker compose logs <container name>
Common fixes:
nvidia-smi # Verify GPU detection
docker compose down && docker compose up --build # preserve data to rebuild
docker compose down -v && docker compose up --build # ⚠️ delete all data to full rebuild
-v flag: Permanently delete all databases and model weights.
Choose the operation you need:
| Scenario | Command | Effect |
|---|---|---|
| Stop services (preserve data) | docker compose stop | Stops containers but keeps them intact |
| Restart after stop | docker compose start | Restarts stopped containers |
| Rebuild after code changes | docker compose up -d --build | Rebuilds images and recreates containers |
| Recreate containers (preserve data) | docker compose down docker compose up -d | Destroys then recreates containers |
| Full cleanup (delete all data) | docker compose down -v | ⚠️ Destroys containers and deletes volumes |
For faster subsequent launches, run docker compose stop instead of down to preserve models.
Congratulations! You're now running the world's first visual-native AI agent engine. 🚀
Next Steps
- Upload documents in Knowledge Base
- Try visual Q&A in Chat
- Build agents in Workflow
